RFdiffusion3 — Input Specification & Command-line arguments¶

RFdiffusion3 accepts inputs in two forms:

Constrains to be applied to the inference run are given in JSON or YAML files
Details about the job (number of designs, output directory, etc.) are given as command line arguments

This document outlines the various input settings and configurations you can use with RFdiffusion3.

Quick start¶

For more detailed information on RFdiffusion3 inputs and outputs, see Inference Calculation Basics

JSON inputs take the following top-level structure;

{
    "spec-1": {  // First design configuration
      "input": "<path/to/pdb>",
      "contig": "50-80,/0,A1-100",  // Diffuses length 50-80 monomer in chain A & selects indices A1 -> A100 in input pdb to have fixed coordinates and sequences
      "select_unfixed_sequence": "A20-35", // Converts selected indices in input to have unfixed sequence (inputs become atom14).
      "ligand": "HAX,OAA",  // Selects ligands HAX and OAA based on res name in the input
    },
    "spec-2": {
      // ... args for the second (independent) configuration for design.
    }
}

You can then run inference at the command line with:

rfd3 design out_dir=<path/to/outdir> inputs=<path/to/inputs>

CLI arguments¶

Required CLI arguments:¶

out_dir — The directory that output files from the inference run will be stored in. If the directory does not exist it will be created. This does not change how the output files are named.
inputs — The path and file name of the JSON or YAML file where you have defined your inference constraints.

Other Useful CLI arguments:¶

(From the default config)

n_batches — number of batches to generate per input key (default: 1).
diffusion_batch_size — number of diffusion samples (designs) per batch (default: 8). If n_batches=1 and diffusion_batch_size=8 then 8 designs will be generated from the inference run.
specification — JSON overrides for the per-example InputSpecification (default: {}). For example, you can run rfd3 design inputs=null specification.length=200 for a quick debug of creating a 200-length protein.
inference_sampler.num_timesteps — diffusion timesteps for sampling (default: 200).
inference_sampler.step_scale — scales diffusion step size; higher → less diverse, more designable (default: 1.5).
low_memory_mode — memory-efficient tokenization mode; set True if GPU RAM is tight (default: False).
ckpt_path — String containing he path and file name of the checkpoint path you want to use (default: rfd3)
skip_existing — Skip designing any systems whose output files already exist in the specified out_dir (default: True).
global_prefix — This setting allows you to change the beginning of the name of the output files from the name of the input JSON or YAML file to your own string (default: null).
dump_trajectories — If True, the trajectory files are also saved to the specified output directory (default: False).
prevalidate_inputs — Check that your inputs (JSON or YAML file) are valid before running inference (default: False).
low_memory_mode - Set to True (default: False) for memory efficient tokenization mode.

Other CLI Options:¶

json_keys_subset — Allows the user to extract only a subset of the JSON keys provided in the inputs file (default: null).
inference_sampler —
- kind — Change this value to symmetry (default: default) to turn on symmetry mode for the inference sampler.
- cfg_features — The values specified (options are active donor, active_acceptor, or ref_atomwise_rasa) are set to 0 for classifier-free guidance. Classifier-free guidance is how the diffusion model can steer the calculation towards a condition without training a separate classifier.
- use_classifier_free_guidance — If set to True, RFD3 can use classifier-free guidance to guide the system towards a condition without training a separate classifier (default: Fasle).
- cfg_t_max — The maximum time to apply classifier-free guidance to the inference run (default: null).
- cfg_scale — Controls the influence of the classifier-free guidance adjustment (default: 1.5).
- center_option: Specifies how to center the coordinates during the inference run to ensure that structures are alined around a specific point. Options include:
  - all — (default) Uses the center of mass (COM) of all atoms
  - motif — Uses the COM of the motif atoms with fixed coordinates
  - diffuse — Uses the COM of all fixed coordinates that are not part of motif atoms
- s_trans — Translational noise scale for augmentation during inference (default: 1.0).
- allow realignment — If set to True (default: False) then the noised structure can be realigned during inference based on the location of a given motif.
- noise_scale — This parameter sets the scaling for the noise during inference (default 1.003). A smaller value will lead to less noise in your system leading to less diversity in the outputs.
- p — Determines the ‘shape’ of the noise schedule (default: 7).
- gamma_0 — This value (default: 0.6) influences the diversity of the designs from RFD3. A lower value increases designability but decreases diversity.
- gamma_min — Controls when gamma_0 is used, if t>gamma_min, gamma_0 is used as the value of gamma, which influences the diversity of the designs from RFD3.
- s_jitter_origin — Controls the standard deviation of the Gaussian distribution that is used to ‘jitter’ the motif offset (default: 0.0, no jitter).
cleanup_guideposts — Set to False (default: True) to save the guideposts used during inference, see Debugging recommendations for more information.
cleanup_virtual_atoms — Set to False (default: True) to save information about the diffused virtual atoms used during inference. RFD3 uses virtual atoms to account for the different number of atoms in side chains during the design process. RFD3 is atom based, however the number of atoms in a residue will differ based on its side chain, which is only determined after some diffusion steps have occurred, meaning virtual atoms are necessary for those steps. See Debugging recommendations for more information.
read_sequence_from_sequence_head — Used during training, it is not recommended to change this setting (default: True).
output_full_json — Output all specification information to the JSON file that gets created for each design (default: True).
dump_prediction_metadata_json — If True, the metadata for the inference run will be included in the output JSON file (default: True).
align_trajectory_structures — Aligns the structures in the output trajectories (default: False).

The full config of default arguments that are applied can be seen in inference_engine/rfdiffusion3.yaml

InputSpecification fields¶

Below is a table of all of the inputs that the InputSpecification accepts. Use these fields to describe the constraints you want to apply to your system during inference.

For the fields with the InputSelection type, see section The InputSelection Mini-Language.

Many of the settings here will mention a ‘contig string’, see the Contig Strings section for more details.

Field	Type	Description
`input`	`str`	Path to and file name of PDB/CIF. Required if you provide contig+length.
`atom_array_input`	internal	Pre-loaded `AtomArray` (not recommended).
`contig`	`InputSelection`	(Can only pass a contig string.) Indexed motif specification, e.g., `"A1-80,10,\0,B5-12"`.
`unindex`	`InputSelection`	(Can only pass a contig string or dictionary.) Unindexed motif components, the specified residues can be anywhere in the final sequence. See Unindexing Specifics for more information.
`length`	`str`	Total design length constraint; `"min-max"` or int for specified length.
`ligand`	`str`	Ligand(s) by chemical component name (from RSCB PDB) or index.
`cif_parser_args`	`dict`	Optional args to CIF loader. See CIF parser options for more information.
`extra`	`dict`	Extra metadata (e.g., logs). Current options include `sampled_contig`.
`dialect`	`int`	`2`=new (default), `1`=legacy, Learn more about the legacy parsing system by looking at input_parsing.py.
`select_fixed_atoms`	`InputSelection`	Atoms with fixed coordinates. See the Select Fixed Atoms subsection for more information.
`select_unfixed_sequence`	`InputSelection`	Where sequence can change. Default is `True` - all input regions have fixed sequences. Contig string input specifies components to unfix the sequence for. Dictionary inputs are allowed but not recommended.
`select_buried` / `select_partially_buried` / `select_exposed`	`InputSelection`	Selection of RASA (Relatively Accessible Surface Area) for buried, partially buried, and exposed conditioning, respectively. Only contig string and dictionary are acceptable inputs.
`select_hbond_donor` / `select_hbond_acceptor`	`InputSelection`	Atom-wise donor/acceptor flags. Atom-wise selection of hydrogen bond donors and acceptors, respectively. Only dictionary inputs allowed. See RFdiffusion3 — Nucleic acid binder design examples for an example.
`select_hotspots`	`InputSelection`	Atom-level or residue-level hotspots. Hotspots will typically be at most 4.5 Å to any heavy atom in the designed structure. Typically used for designing binders.
`redesign_motif_sidechains`	`bool`	Fixed backbone, redesigned sidechains for motifs (input structures).
`symmetry`	`SymmetryConfig`	See Overview of Symmetry in RFD3.
`ori_token`	`list[float]`	`[x,y,z]` origin override to control COM (center of mass) placement of designed structure.
`infer_ori_strategy`	`str`	`"com"` or `"hotspots"`. The center of mass of the diffused region will typically be within 5Å of the ORI token. Using `hotspots` will place the ORI token 10Å outward from the center of mass of the specified hotspots. Using `com` will place the token at the center of mass of the input structure.
`plddt_enhanced`	`bool`	Default `True`. Enables pLDDT (predicted Local Distance Difference Test) enhancement.
`is_non_loopy`	`bool`	Default `True`. Produces output structures with fewer loops.
`partial_t`	`float`	Noise (Å) for partial diffusion, enables partial diffusion (sets the noise level.) Recommended values are 5.0-15.0 Å. See Partial Diffusion for more information.

A few notes on the above:

Unified selections. All per-residue/atom choices now use InputSelection:
- You can pass True/False, a contig string ("A1-10,B5-8"), or a dictionary ({"A1-10": "ALL", "B5": "N,CA,C,O"}).
- Selection fields include: select_fixed_atoms, select_unfixed_sequence, select_buried, select_partially_buried, select_exposed, select_hbond_donor, select_hbond_acceptor, select_hotspots.
Clearer unindexing. For unindexed motifs you typically either fix "ALL" atoms or explicitly choose subsets such as "TIP"/"BKBN"/explicit atom lists via a dictionary (see examples). ("ALL" = all atoms, "TIP" = tip atoms, "BKBN" = backbone atoms.) When using unindex, only the atoms you mark as fixed are carried over from the input.
Reproducibility. The exact specification and the sampled contig are logged back into the output JSON. We also log useful counts (atoms, residues, chains).
Safer parsing. You’ll now get early, informative errors if:
- You pass unknown keys,
- A selection doesn’t match any atoms,
- Indexed and unindexed motifs overlap,
- Mutually exclusive selections overlap (e.g., two RASA bins for the same atom).
Backwards compatible. Add "dialect": 1 to keep your old configs running while you migrate. (Deprecated.)

The InputSelection Mini-Language¶

Fields marked as InputSelection accept either a boolean, a contig-style string, or a dictionary. Dictionaries are the most expressive and can also use shorthand values like ALL, TIP, or BKBN:

select_fixed_atoms:
  A1-2: BKBN # equivalent to 'N,CA,C,O'
  A3: N,CA,C,O,CB  # specific atoms by atom name
  B5-7: ALL # Selects all atoms within B5,B6 and B7
  B10: TIP  # selects common tip atom for residue (constants.py)
  LIG: ''  # selects no atoms (i.e. unfixes the atoms for ligands named `LIG`)

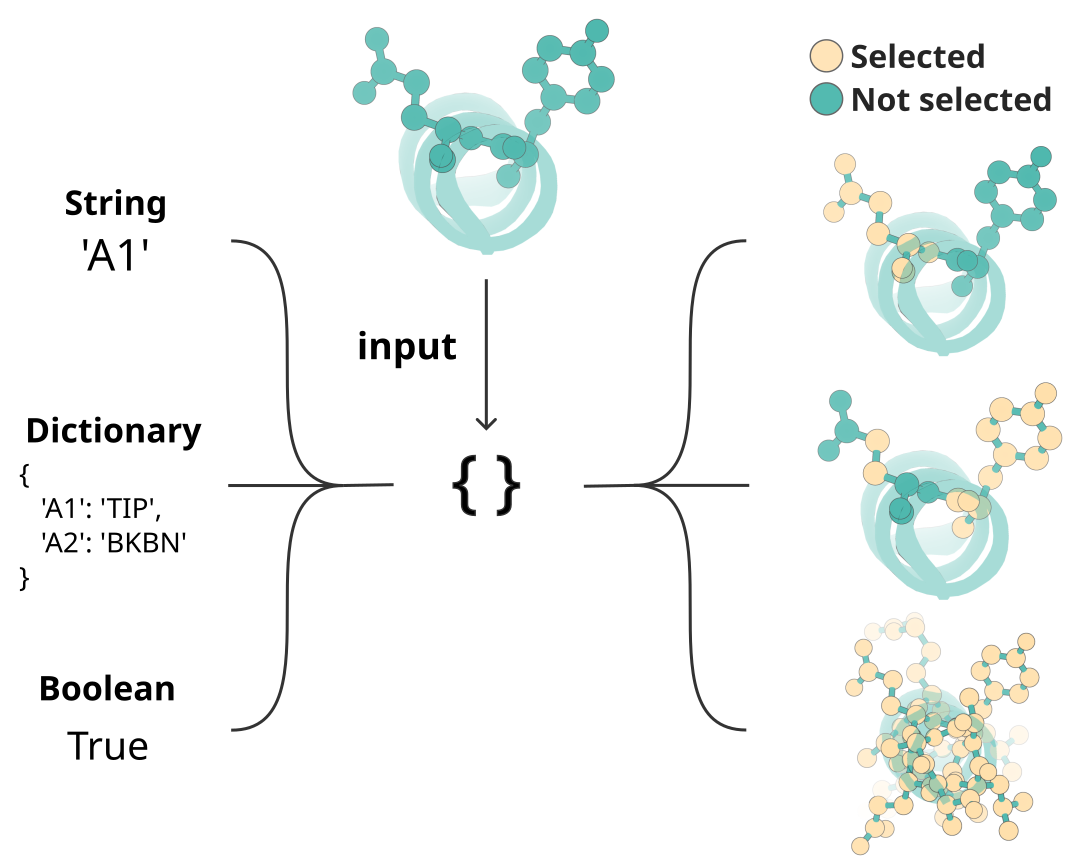

Input selection language for foundry. — Graphical representation of the different ways to specify portions of a structure using RFD3’s InputSelection mini-language.¶

Contig Strings¶

A ‘contig string’ is a string that contains residue information and is used in many of the settings in the table above. Here are some formatting specifics:

Different pieces of information included in the string are separated by commas
Ranges of residues are specified by a dash (-) between the starting and ending residue
Chain breaks are represented by \0
Residue numbers or ranges with a chain label before the number come from the input structure
Residue numbers or ranges without a chain label before the number will be designed. If given a range, the designed region will have a length that is uniformly random within the specified range.

For example:

my_calculation:
    input: path/to/my/input.pdb
    contig: A40-60,70,A120-170,A203,\0,B3-45,60-80

A40-60: the design will start with residues 40-60 from the A chain of the input structure.
70: RFD3 will design a chain with exactly 70 residues that will connect to A60
A120-170: RFD3 will include a bond between the last designed residue and residue A120, and then include residues A120-A170 from the input structure.
A203: A bond will be created between A170 and A203 and A203 will be in the final structure. However, residues A171-A202 will not be in the final structure.
\0: Chain break. There is no peptide bond between A203 and B3 in the output structure
B3-B45: Residues B3 thru B45 are taken from the input structure.
60-80: A design region is added B45 that will be between 60 and 80 residues long.

Input Option Specifics¶

Unindexing Specifics¶

unindex marks motif tokens whose relative sequence placement is unknown to the model (useful for scaffolding around active sites, etc.). Use a string to list the unindexed components and where breaks occur. Use a dictionary if you want to fix specific atoms of those residues; atoms not fixed are not copied from the input (they will be diffused). Breaks between unindexed components follow the contig conventions you’re used to. For example: "A244,A274,A320,A329,A375" lists multiple unindexed components; internal “breakpoints” are inferred and logged. (Offset syntax like A11-12 or A11,0,A12 still ties residues.) You can specify consecutive residues as e.g. A11-12 (instead of A11,A12), this will tie the two components together in sequence (or at least it leaks to the model that residues are together in sequence). Similarly, you can specify manually any number of residues that offsets two components, e.g. A11,0,A12 (0 sequence offset, equivalent to just A11-12), or A11,3,A12 (3-residue separation). From our initial tests this only leads to a slight bias in the model, but newer models may show better adherence!

Partial Diffusion¶

To enable partial diffusion, you can pass partial_t with any example. This sets the noise level in angstroms for the sampler:

The specification.partial_t argument can be specified from JSON or the command line.
Partial diffusion will fix/unfix ligands and nucleic acids as normal, by default it will fix non-protein components and they must be specified explicitly.
By default, the ca-aligned ca_rmsd_to_input will be logged.
Currently, partial diffusion subsets the inference schedule based on the partial_t, so inference_sampler.num_timesteps will affect how many steps are used but it is not equal to the number of steps used.

In the following example, RFD3 will noise out by 15 angstroms and constrain atoms of three residues. In this output one of the 8 diffusion outputs swapped its sequence index by one residue:

{
    "partial_diffusion": {
        "input": "paper_examples/7v11.cif",
        "ligand": "OQO",
        "partial_t": 15.0,
        "unindex": "A431,A572-573",
        "select_fixed_atoms": {
            "A431": "TIP",
            "A572": "BKBN",
            "A573": "BKBN"
        }
    }
}

Below is an example of what the output should look like (diffusion outputs in teal, original native in navajo white):

CIF Parser Options¶

The cif_parser_args setting that you can include in your input JSON or YAML file accepts several possible values as a dictionary:

cache_dir: String specifying the path to the directory where cache files are stored (default: null).
load_from_cache: Boolean specifying if data should be loaded from cache (default: True).
save_to_cache: Boolean specifying if the data should be saved to cache (default: True).
fix_arginines: Boolean specifying if arginine residues should be fixed (default: False).
add_missing_atoms: Boolean specifying if missing atoms should be automatically added (default: False).
remove_ccds: A list of CCD (chemical component dictionary) keys to remove (default: []).
hydrogen_policy: String specifying how hydrogens should be handled. Current options are remove. (Default: remove).
extra_fields: These optional fields can be found by looking at AtomWorks’ parser.py file.

You can also use STANDARD_PARSER_ARGS from AtomWorks, more information can be found at atomworks/io/parser.py

Select Fixed Atoms¶

The select_fixed_atoms input setting can take a boolean, dictionary or contig string as input:

True: All atoms pulled from the input file (via contig, for example) are fixed in 3D space
False: All the atoms pulled from the input file are unfixed in 3D space
Contig string: See the Contig Strings section for formatting. Specifying a contig string for this setting allows for the specification of several components to fix in 3D space. This string should only reference residues from the input. Chain breaks are irrelevant for this setting.
Dictionary: Allows for the specification of specific atoms within the residue to be fixed in 3D space. For example, {"A1": "N,CA,C,O,CB,CG", "A2-10": "BKBN"} fixes backbone and CB for residues 1 and 2, and all atoms for residues 3-10 in chain A.

Debugging recommendations¶

For unindexed scaffolding, you can use the option cleanup_guideposts=False to keep the models’ outputs for the guideposts. The guideposts are saved as separate chains based on whether their relative indices were leaked to the model: e.g. for unindex=A11-12,A22, you should see A11 and A12 indexed together on one chain and A22 on its own chain, indicating the model was provided with the fact that A11 and A12 are immediately next to one another in sequence but their distance to A22 is unknown.
To see the full 14 diffused virtual atoms you can use cleanup_virtual_atoms=False. Default is to discard them for the sake of downstream processing.
To see the trajectories, you can use dump_trajectories=True. This can be useful if the outputs look strange but the config is correct, or if you want to make cool gifs of course! Trajectories do not have sequence labels and contain virtual atoms.

FAQ / Gotchas¶

Can I guide on secondary structure?

Currently no - in future models we may do so, however, you can use `is_non_loopy: true` to make fewer loops. We find this produces a lot more helices and fewer loops (and less sheets).

Do I need select_fixed_atoms & select_unfixed_sequence every time?

No. Defaults apply when input present.

Why "Input provided but unused"?

This indicates you gave an input pdb / cif (not input: null) but no contig, unindex, ligand, and/or partial_t.

What do the logged bfactors mean?

The sequence head from RFD3 logs its confidence for each token in the output structure, you can run spectrum b in pymol to see it. It usually doesn’t mean anything but can give you some idea if the model has gone vastly distribution if the entropy is high (uncertain assignment of sequence).

Let us know if you have any additional questions, we’d be happy to answer them either in our Slack channel or in a GitHub discussion.

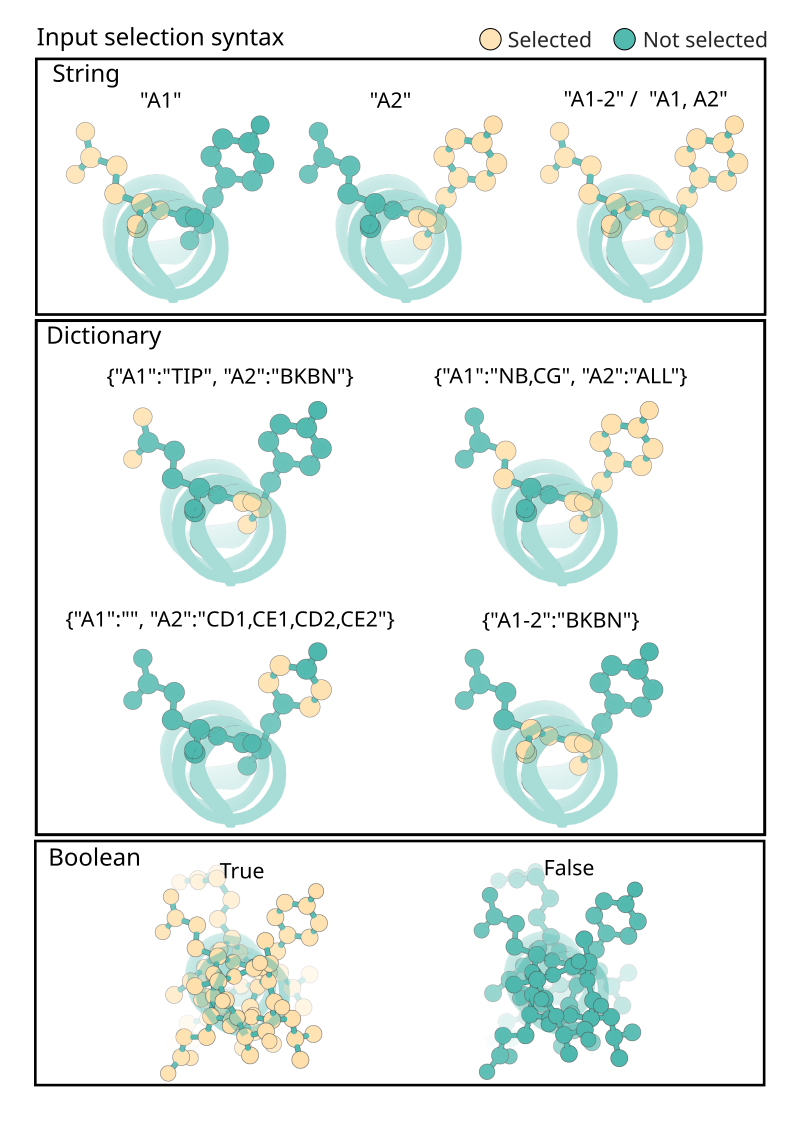

Further examples of InputSelection syntax¶

Below is a reference for more examples of different ways you can specify inputs to select from your pdb in configs; we hope the community can find use in this flexible system for future models!
