Creating Custom Transforms: Ligand Pocket Conditioning

This example demonstrates how to create custom Transform classes in AtomWorks using ligand pocket identification as an example. We’ll build two transforms that follow AtomWorks conventions.

Prerequisites: Familiarity with Loading and Visualizing Protein Structures and Annotating and Saving Protein Structures for basic structure handling and annotation techniques.

Transform Architecture and Design Patterns

AtomWorks Transform classes follow a standard pattern with one required method - forward() - and several optional methods/attributes to promote interoperability and pipeline compatibility.

Required Method

• forward(): The only mandatory method. Takes a state dictionary and returns an updated dictionary.

Optional Methods & Attributes

• check_input(): Validates input data (annotations, types, etc.), raising informative errors if conditions are violated

• requires_previous_transforms: List of Transforms that MUST run within the pipeline prior to this Transform

• incompatible_previous_transforms: List of Transforms that CANNOT have been run within the pipeline prior to this Transform

Conventions

A. Store information in AtomArray annotations, not in the state dictionary.

This ensures robustness when atoms are added/removed downstream.

For the example below:

• ✅ Add is_pocket_atom annotation to AtomArray

• ❌ Store pocket_atom_indices in dictionary (which creates significant dependencies with operations that delete or re-order atoms)

B. Within forward(), call a stand-alone function with the same name as the transform class.

We thus maintain an object-oriented and a functional API, making our core logic re-usable and testable outside of the Transform framework.

For the example below:

• AnnotateLigandPockets.forward() calls annotate_ligand_pockets() function

• FeaturizePocketAtoms.forward() calls featurize_pocket_atoms() function

Additionally, this function should preserve the input (e.g., not modify the underlying AtomArray) and take as arguments any necessary parameters.

C. Each Transform should follow the single-responsibility-principle; in particular separate Annotation from Featurization Transforms

To ensure our Transform code is maximally forward-compatible and re-usable across disparate pipelines, we adhere to the single responsibility principle - that is, each transform should do exactly one action.

For the example below:

• AnnotateLigandPockets only identifies and annotates pocket atoms

• FeaturizePocketAtoms only converts existing annotations to numeric features

Now, if a different model wants to perform an action on small molecule pockets, but with a different featurization scheme, the researchers would simply need to write a different Featurize Transform leveraging the existing annotations.

import biotite.structure as struc
import numpy as np
from biotite.structure import AtomArray

# AtomWorks imports
from atomworks.io import parse
from atomworks.io.utils.testing import get_pdb_path_or_buffer
from atomworks.io.utils.visualize import view
from atomworks.ml.transforms._checks import check_atom_array_annotation
from atomworks.ml.transforms.base import Transform

# sphinx_gallery_thumbnail_path = '_static/examples/pocket_conditioning_transform_01.png'

# Load example structure (myoglobin with heme ligand; our recurring test example)
example_pdb_id = "101m"
pdb_path = get_pdb_path_or_buffer(example_pdb_id)

parse_output = parse(pdb_path)
atom_array = parse_output["assemblies"]["1"][0]

print(f"Loaded structure: {len(atom_array)} atoms")
print(f"Non-polymer residues: {np.unique(atom_array.res_name[~atom_array.is_polymer])}")
print(f"Heme atoms: {np.sum(atom_array.res_name == 'HEM')}")

Building AnnotateLigandPockets

Let’s create a Transform that identifies atoms near ligands (non-polymer molecules) of sufficient size.

Observe how we follow the conventions outlined above:

• Stores results as AtomArray annotation rather than returning indices or masks separately.

• Does not modify input AtomArray in place.

• Function name mimics Transform class name for clarity.

• Accepts all parameters as arguments.

def annotate_ligand_pockets(
    atom_array: AtomArray,
    pocket_distance: float = 6.0,
    n_min_ligand_atoms: int = 5,
    annotation_name: str = "is_ligand_pocket",
) -> AtomArray:
    """
    Identify atoms near ligands of sufficient size.

    Args:
        atom_array: Input structure
        pocket_distance: Distance threshold for pocket identification (Angstroms)
        n_min_ligand_atoms: Minimum atoms required for a ligand (across the full pn_unit) to define pockets
        annotation_name: Name for the boolean annotation

    Returns:
        AtomArray with ligand pocket annotation added
    """
    atom_array = atom_array.copy()  # By convention, do not modify input in place

    # Find all ligand pn_unit_iids within our structure and their atom counts
    # We make use of the pn_unit_iid annotation, which is most applicable for ligands, elegantly
    # handling cases of multi-residue or multi-chain small molecules (e.g., many sugars)
    # See the Glossary for more information regarding our naming conventions within AtomWorks
    ligand_pn_unit_iids, ligand_counts = np.unique(atom_array.pn_unit_iid[~atom_array.is_polymer], return_counts=True)

    # Filter to only ligands with sufficient size
    valid_ligand_mask = ligand_counts >= n_min_ligand_atoms
    valid_ligand_pn_unit_iids = ligand_pn_unit_iids[valid_ligand_mask]

    # Initialize pocket annotation
    pocket_annotation = np.zeros(len(atom_array), dtype=bool)

    if len(valid_ligand_pn_unit_iids) == 0:
        # No valid ligands found - store empty annotation and return
        atom_array.set_annotation(annotation_name, pocket_annotation)
        return atom_array

    # Build CellList for efficient distance computations on CPU
    # (Atoms with invalid coordinates would break our distance search)
    valid_coords_mask = ~np.isnan(atom_array.coord).any(axis=1)
    assert np.any(valid_coords_mask), "No valid coordinates found"

    valid_coords = atom_array.coord[valid_coords_mask]
    cell_list = struc.CellList(valid_coords, cell_size=pocket_distance)

    # Get coordinates of all valid ligands
    all_valid_ligands_mask = np.isin(atom_array.pn_unit_iid, valid_ligand_pn_unit_iids)
    all_ligand_coords = atom_array.coord[all_valid_ligands_mask]

    # Find atoms within distance of any ligand coordinates (all at once)
    distance_mask = cell_list.get_atoms(all_ligand_coords, pocket_distance, as_mask=True)
    near_ligand_valid = np.any(distance_mask, axis=0)

    # Map back to full atom array
    near_ligand_full = np.zeros(len(atom_array), dtype=bool)
    near_ligand_full[valid_coords_mask] = near_ligand_valid

    # Only polymer atoms can be pocket atoms
    pocket_annotation = atom_array.is_polymer & near_ligand_full

    # Store result as annotation (AtomWorks convention)
    atom_array.set_annotation(annotation_name, pocket_annotation)
    return atom_array


class AnnotateLigandPockets(Transform):
    """Identify atoms near ligands of sufficient size."""

    def __init__(
        self, pocket_distance: float = 6.0, n_min_ligand_atoms: int = 5, annotation_name: str = "is_ligand_pocket"
    ):
        self.pocket_distance = pocket_distance
        self.n_min_ligand_atoms = n_min_ligand_atoms
        self.annotation_name = annotation_name

    def check_input(self, data: dict) -> None:
        """Validate input has required annotations. (Optional method)"""
        check_atom_array_annotation(data, ["is_polymer", "pn_unit_iid"])

    def forward(self, data: dict) -> dict:
        """Apply ligand pocket annotation. (Required method)"""
        # Follow forward/function pattern: call standalone function
        data["atom_array"] = annotate_ligand_pockets(
            data["atom_array"],
            pocket_distance=self.pocket_distance,
            n_min_ligand_atoms=self.n_min_ligand_atoms,
            annotation_name=self.annotation_name,
        )
        return data

# Test the functional version
result_array = annotate_ligand_pockets(
    atom_array, pocket_distance=6.0, n_min_ligand_atoms=5, annotation_name="is_ligand_pocket"
)

# Here, we are using AtomWork's "query" syntax for convenience, which operates similar to Pandas DataFrame queries
# Please see the API documentation for more details

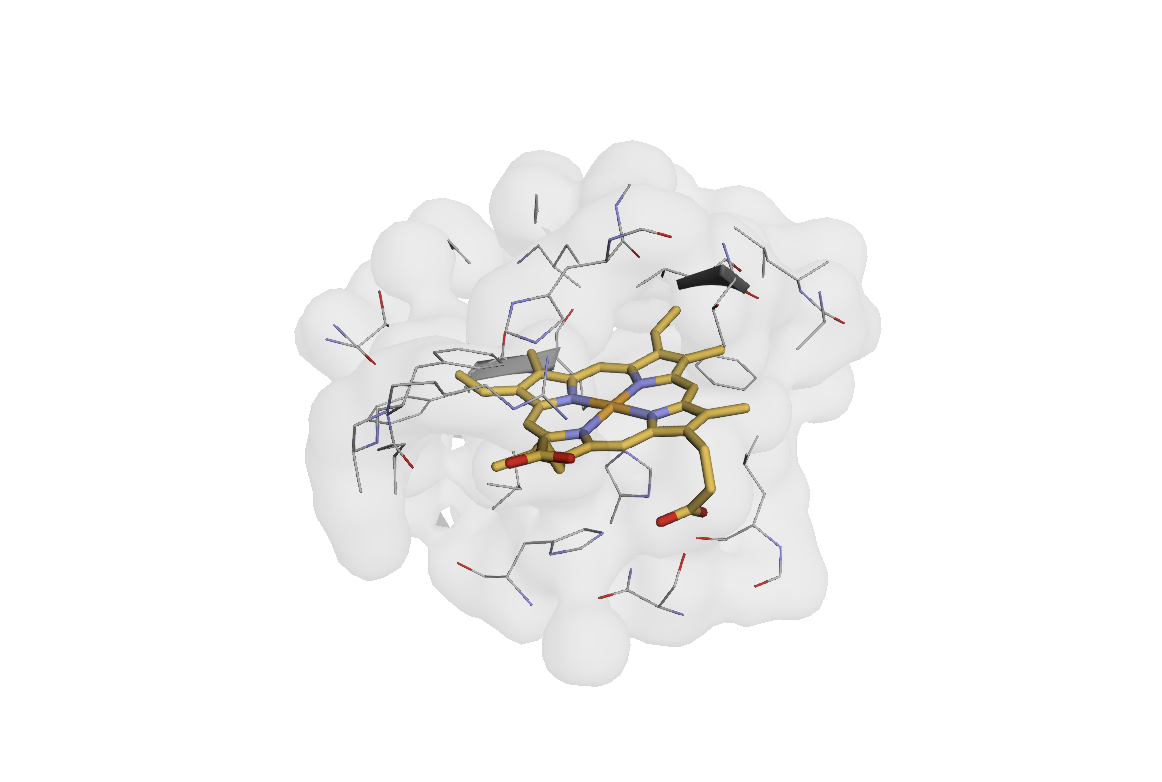

view(result_array.query("is_ligand_pocket | (res_name == 'HEM')"))

Building FeaturizePocketAtoms

Now let’s create a model-specific transform that converts derived pocket annotations into numeric features.

Here, we also demonstrate the use of: - ``requires_previous_transforms``: Ensures dependency ordering in pipelines - ``check_atom_array_annotation()``: Validates required annotations using AtomWorks utilities

We can imagine varying this featurization Transform across models while keeping the original annotation Transform constant.

def featurize_pocket_atoms(atom_array: AtomArray, pocket_annotation_name: str = "is_ligand_pocket") -> dict:
    """
    Create one-hot encoded features from pocket annotations.

    Args:
        atom_array: Structure with pocket annotations
        pocket_annotation_name: Name of the pocket boolean annotation

    Returns:
        Dictionary with feature array and metadata
    """
    pocket_mask = getattr(atom_array, pocket_annotation_name)

    # Create one-hot encoded feature: 0.0 for non-pocket, 1.0 for pocket atoms
    features = pocket_mask.astype(np.float32).reshape(-1, 1)

    return {"features": features, "feature_names": ["is_pocket_atom"], "n_atoms": len(atom_array)}


class FeaturizePocketAtoms(Transform):
    """Convert pocket annotations into one-hot encoded numeric features."""

    requires_previous_transforms = ["AnnotateLigandPockets"]  # noqa: RUF012

    def __init__(self, pocket_annotation_name: str = "is_ligand_pocket", feature_key: str = "pocket_features"):
        self.pocket_annotation_name = pocket_annotation_name
        self.feature_key = feature_key

    def check_input(self, data: dict) -> None:
        """Validate input has pocket annotations using AtomWorks utility."""
        check_atom_array_annotation(data, [self.pocket_annotation_name])

    def forward(self, data: dict) -> dict:
        """Generate features following the forward/function pattern."""
        data[self.feature_key] = featurize_pocket_atoms(
            data["atom_array"], pocket_annotation_name=self.pocket_annotation_name
        )
        return data

# Test featurization using a proper pipeline
# First apply the annotation transform, then the featurization
annotator = AnnotateLigandPockets(pocket_distance=6.0, n_min_ligand_atoms=5)
featurizer = FeaturizePocketAtoms()

# Apply both transforms in sequence
data = {"atom_array": atom_array}
annotated_data = annotator(data)
feature_result = featurizer(annotated_data)

features = feature_result["pocket_features"]
print(f"Generated features: {features['features'].shape}")
print(f"Feature names: {features['feature_names']}")
print(f"Feature type: {type(features['features'])}")
print(f"Pocket atoms (sum): {features['features'].sum():.0f}")
print(f"Non-pocket atoms: {len(features['features']) - features['features'].sum():.0f}")

Pipeline Composition

Transform composition allows chaining transforms together with automatic dependency checking:

from atomworks.ml.transforms.base import Compose

# Create a complete ligand pocket processing pipeline
ligand_pocket_pipeline = Compose(
    [
        AnnotateLigandPockets(pocket_distance=6.0, n_min_ligand_atoms=3),
        FeaturizePocketAtoms(feature_key="pocket_features"),
    ]
)

# Apply pipeline to fresh data
fresh_data = {"atom_array": atom_array}
pipeline_result = ligand_pocket_pipeline(fresh_data)

print("Pipeline Results:")
print(f"  Transforms applied: {[t.__class__.__name__ for t in ligand_pocket_pipeline.transforms]}")
print(f"  Pocket atoms found: {np.sum(pipeline_result['atom_array'].is_ligand_pocket)}")
print(f"  Features shape: {pipeline_result['pocket_features']['features'].shape}")

# Demonstrate the + operator
alternative_pipeline = AnnotateLigandPockets(n_min_ligand_atoms=8) + FeaturizePocketAtoms()
alt_result = alternative_pipeline({"atom_array": atom_array})
print(f"  Alternative (min 8 atoms): {np.sum(alt_result['atom_array'].is_ligand_pocket)} pocket atoms")
